Kenworth Bearing meet the most exacting specifications of the aerospace and defense, commercial aerospace, heavy equipment, industrial machinery, medical systems, mining, oil and gas, robotics, semiconductor, solar, and wind markets.
We supply Kaydon Reali-Slim® and Ultra-Slim® bearings which are available in a wide variety of materials, separator options, cross-sections, internal fit up choices, lubricants, corrosion resistance options and contact angles. With bore sizes from 3/4 inch to 40 inches (19 mm to 1 m), we provides the largest range of thin section bearings.
-Thin Section Open Bearings
-Thin Section Sealed Bearings
-Reali Slim Thin Section Metric Bearings
-Ultra Slim Extra Thin Section Bearings
The thin-walled bearing realizes the extremely thin bearing section, and also realizes the miniaturization and light weight of the product. The variety of products expands its scope of use.

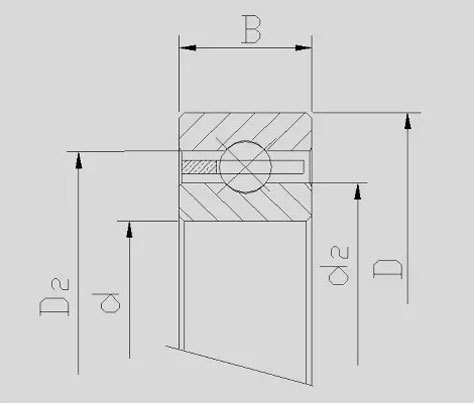

| Bearing Number |
BEARING TYPE |
Bore Dia
d |
Outside Dia
D |
Width
B |
Seal Type |
Cage Material |
| KD070CP0 |
Radial |
7.000" |
8.000" |
0.5" |
Open |
Brass |
| KD075CP0 |
Radial |
7.500" |
8.500" |
0.5" |
Open |
Brass |
| KD080CP0 |
Radial |
8.000" |
9.000" |
0.5" |
Open |
Brass |
| KD090CP0 |
Radial |
9.000" |
10.000" |
0.5" |
Open |
Brass |
| KD100CP0 |
Radial |
10.000" |
11.000" |
0.5" |
Open |
Brass |
| KD110CP0 |
Radial |
11.000" |
12.000" |
0.5" |
Open |
Brass |
| KD120CP0 |
Radial |
12.000" |
13.000" |
0.5" |
Open |
Brass |
| KD140CP0 |
Radial |
14.000" |
15.000" |
0.5" |
Open |
Brass |
| KD160CP0 |
Radial |
16.000" |
17.000" |
0.5" |
Open |
Brass |
| KD180CP0 |
Radial |
18.000" |
19.000" |
0.5" |
Open |
Brass |
| KD180XP0 |
Radial |
18.000" |
19.000" |
0.5" |
Open |
Brass |
| KD200CP0 |
Radial |
20.000" |
21.000" |
0.5" |
Open |
Brass |
| KD210CP0 |
Radial |
21.000" |
22.000" |
0.5" |
Open |
Brass |
| KD250CP0 |
Radial |
25.000" |
26.000" |
0.5" |
Open |
Brass |
| KD300CP0 |
Radial |
30.000" |
31.000" |
0.5" |
Open |
Brass |
| KD040XP0 |
Four Point |
4.000" |
5.000" |
0.5" |
Open |
Brass |
| KD042XP0 |
Four Point |
4.250" |
5.250" |
0.5" |
Open |
Brass |
| KD045XP0 |
Four Point |
4.500" |
5.500" |
0.5" |
Open |
Brass |
| KD047XP0 |
Four Point |
4.750" |
5.750" |
0.5" |
Open |
Brass |
| KD050XP0 |
Four Point |
5.000" |
6.000" |
0.5" |
Open |
Brass |
| KD055XP0 |
Four Point |
5.500" |
6.500" |
0.5" |
Open |
Brass |
| KD060XP0 |
Four Point |
6.000" |
7.000" |
0.5" |
Open |
Brass |
| KD065XP0 |
Four Point |
6.500" |
7.500" |
0.5" |
Open |
Brass |
| KD070XP0 |
Four Point |
7.000" |
8.000" |
0.5" |
Open |
Brass |
| KD075XP0 |
Four Point |
7.500" |
8.500" |
0.5" |
Open |
Brass |
| KD080XP0 |
Four Point |
8.000" |
9.000" |
0.5" |
Open |
Brass |
| KD090XP0 |
Four Point |
9.000" |
10.000" |
0.5" |
Open |
Brass |
| KD100XP0 |
Four Point |
10.000" |
11.000" |
0.5" |
Open |
Brass |
| KD110XP0 |
Four Point |
11.000" |
12.000" |
0.5" |
Open |
Brass |
| KD120XP0 |
Four Point |
12.000" |
13.000" |
0.5" |
Open |
Brass |
| KD140XP0 |
Four Point |
14.000" |
15.000" |
0.5" |
Open |
Brass |
| KD160XP0 |
Four Point |
16.000" |
17.000" |
0.5" |
Open |
Brass |
| KD200XP0 |
Four Point |
20.000" |
21.000" |
0.5" |
Open |
Brass |
| KD210XP0 |
Four Point |
21.000" |
22.000" |
0.5" |
Open |
Brass |
| KD250XP0 |
Four Point |
25.000" |
26.000" |
0.5" |
Open |
Brass |
| KD300XP0 |
Four Point |
30.000" |
31.000" |
0.5" |
Open |
Brass |
| KF040AR0 |
Angular |
4.000" |
5.500" |
0.75" |
Open |
Brass |
| KF042AR0 |
Angular |
4.250" |
5.750" |
0.75" |
Open |
Brass |
| KF045AR0 |
Angular |
4.500" |
6.000" |
0.75" |
Open |
Brass |
| KF047AR0 |
Angular |
4.750" |
6.250" |
0.75" |
Open |
Brass |
| KF050AR0 |
Angular |
5.000" |
6.500" |
0.75" |
Open |
Brass |
| KF055AR0 |
Angular |
5.500" |
7.000" |
0.75" |
Open |
Brass |
| KF060AR0 |
Angular |
6.000" |
7.500" |
0.75" |
Open |
Brass |
| KF065AR0 |
Angular |
6.500" |
8.000" |
0.75" |
Open |
Brass |
| KF070AR0 |
Angular |
7.000" |
8.500" |
0.75" |
Open |
Brass |
| KF075AR0 |
Angular |
7.500" |
9.000" |
0.75" |
Open |
Brass |
| KF080AR0 |
Angular |
8.000" |
9.500" |
0.75" |
Open |
Brass |
| KF090AR0 |
Angular |
9.000" |
10.500" |
0.75" |
Open |
Brass |
| KF100AR0 |
Angular |
10.000" |
11.500" |
0.75" |
Open |
Brass |
| KF100AR0 |
Angular |
11.000" |
12.500" |
0.75" |
Open |
Brass |
| KF120AR0 |
Angular |
12.000" |
13.500" |
0.75" |
Open |
Brass |
| KF140AR0 |
Angular |
14.000" |
15.500" |
0.75" |
Open |
Brass |
| KF160AR0 |
Angular |
16.000" |
17.500" |
0.75" |
Open |
Brass |
| KF180AR0 |
Angular |
18.000" |
19.500" |
0.75" |
Open |
Brass |
| KF200AR0 |
Angular |
20.000" |
21.500" |
0.75" |
Open |
Brass |
| KF250AR0 |
Angular |
25.000" |
26.500" |
0.75" |
Open |
Brass |
| KF300AR0 |
Angular |
30.000" |
31.500" |
0.75" |
Open |
Brass |
| KF350AR0 |
Angular |
35.000" |
36.500" |
0.75" |
Open |
Brass |
| KF400AR0 |
Angular |
40.000" |
41.500" |
0.75" |
Open |
Brass |
| KF040CP0 |
Radial |
4.000" |
5.500" |
0.75" |
Open |
Brass |
| KF042CP0 |
Radial |
4.250" |
5.750" |
0.75" |
Open |
Brass |
| KF045CP0 |
Radial |
4.500" |
6.000" |
0.75" |
Open |
Brass |
| KF047CP0 |
Radial |
4.750" |
6.250" |
0.75" |
Open |
Brass |
| KF050CP0 |
Radial |
5.000" |
6.500" |
0.75" |
Open |
Brass |
| KF055CP0 |
Radial |
5.500" |
7.000" |
0.75" |
Open |
Brass |
| KF060CP0 |
Radial |
6.000" |
7.500" |
0.75" |
Open |
Brass |
| KF065CP0 |
Radial |
6.500" |
8.000" |
0.75" |
Open |
Brass |
| KF070CP0 |
Radial |
7.000" |
8.500" |
0.75" |
Open |
Brass |
| KF075CP0 |
Radial |
7.500" |
9.000" |
0.75" |
Open |
Brass |
| KF080CP0 |
Radial |
8.000" |
9.500" |
0.75" |
Open |
Brass |
| KF090CP0 |
Radial |
9.000" |
10.500" |
0.75" |
Open |
Brass |
| KF100CP0 |
Radial |
10.000" |
11.500" |
0.75" |
Open |
Brass |
| KF110CP0 |
Radial |
11.000" |
12.500" |
0.75" |
Open |
Brass |
| KF120CP0 |
Radial |
12.000" |
13.500" |
0.75" |
Open |
Brass |
| KF140CP0 |
Radial |
14.000" |
15.500" |
0.75" |
Open |
Brass |
| KF160CP0 |
Radial |
16.000" |
17.500" |
0.75" |
Open |
Brass |
| KF180CP0 |
Radial |
18.000" |
19.500" |
0.75" |
Open |
Brass |
| KF200CP0 |
Radial |
20.000" |
21.500" |
0.75" |
Open |
Brass |
| KF250CP0 |
Radial |
25.000" |
26.500" |
0.75" |
Open |
Brass |
| KF300CP0 |
Radial |
30.000" |
31.500" |
0.75" |
Open |
Brass |
| KF350CP0 |
Radial |
35.000" |
36.500" |
0.75" |
Open |
Brass |
| KF400CP0 |
Radial |
40.000" |
41.500" |
0.75" |
Open |
Brass |
| KF040XP0 |
Four Point |
4.000" |
5.500" |
0.75" |
Open |
Brass |
| KF042XP0 |
Four Point |
4.250" |
5.750" |
0.75" |
Open |
Brass |
| KF045XP0 |
Four Point |
4.500" |
6.000" |
0.75" |
Open |
Brass |
| KF047XP0 |
Four Point |
4.750" |
6.250" |
0.75" |
Open |
Brass |
| KF050XP0 |
Four Point |
5.000" |
6.500" |
0.75" |
Open |
Brass |
| KF055XP0 |
Four Point |
5.500" |
7.000" |
0.75" |
Open |
Brass |
| KF060XP0 |
Four Point |
6.000" |
7.500" |
0.75" |
Open |
Brass |
| KF065XP0 |
Four Point |
6.500" |
8.000" |
0.75" |
Open |
Brass |
| KF070XP0 |
Four Point |
7.000" |
9.000" |
0.3125" |
Open |
Brass |
| KF075XP0 |
Four Point |
7.500" |
9.000" |
0.75" |
Open |
Brass |
| KF080XP0 |
Four Point |
8.000" |
9.500" |
0.75" |
Open |
Brass |
| KF090XP0 |
Four Point |
9.000" |
10.500" |
0.75" |
Open |
Brass |
| KF100XP0 |
Four Point |
10.000" |
11.500" |
0.75" |
Open |
Brass |
| KF110XP0 |
Four Point |
11.000" |
12.500" |
0.75" |
Open |
Brass |
| KF120XP0 |
Four Point |
12.000" |
13.500" |
0.75" |
Open |
Brass |
| KF140XP0 |
Four Point |
14.000" |
15.500" |
0.75" |
Open |
Brass |
| KF160XP0 |
Four Point |
16.000" |
17.500" |
0.75" |
Open |
Brass |
| KF180XP0 |
Four Point |
18.000" |
19.500" |
0.75" |
Open |
Brass |
| KF200XP0 |
Four Point |
20.000" |
21.500" |
0.75" |
Open |
Brass |
| KF250XP0 |
Four Point |
25.000" |
26.500" |
0.75" |
Open |
Brass |
| KF300XP0 |
Four Point |
30.000" |
31.500" |
0.75" |
Open |
Brass |
| KF350XP0 |
Four Point |
35.000" |
36.500" |
0.75" |
Open |
Brass |
| KF400XP0 |
Four Point |
40.000" |
41.500" |
0.75" |
Open |
Brass |
| KG040AR0 |
Angular |
4.000" |
6.000" |
1" |
Open |
Brass |
| KG042AR0 |
Angular |
4.250" |
6.250" |
1" |
Open |
Brass |
| KG045AR0 |
Angular |
4.500" |
6.500" |
1" |
Open |
Brass |
| KG047AR0 |
Angular |
4.750" |
6.750" |
1" |
Open |
Brass |
| KG050AR0 |
Angular |
5.000" |
7.000" |
1" |
Open |
Brass |
| KG055AR0 |
Angular |
5.500" |
7.500" |
1" |
Open |
Brass |
| KG060AR0 |
Angular |
6.000" |
8.000" |
1" |
Open |
Brass |
| KG065AR0 |
Angular |
6.500" |
8.500" |
1" |
Open |
Brass |
| KG070AR0 |
Angular |
7.000" |
9.000" |
1" |
Open |
Brass |
| KG075AR0 |
Angular |
7.500" |
9.500" |
1" |
Open |
Brass |
| KG080AR0 |
Angular |
8.000" |
10.000" |
1" |
Open |
Brass |
| KG090AR0 |
Angular |
9.000" |
11.000" |
1" |
Open |
Brass |
| KG100AR0 |
Angular |
10.000" |
12.000" |
1" |
Open |
Brass |
We can provide,
wooden pallet packaging,
Wooden packing,
Steel strapping packaging,
Plastic packaging and other packaging methods.
We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.
We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation.
When you choose ChengJin, you can be confident that you are receiving the best products and service in the industry. We strive for excellence in everything we do, and we strive to exceed our customers' expectations with every interaction. Contact us today to learn more about how we can help you with all your bearing needs.
