NU2xx & NU3xx Series

NU Series are non-locating, single row Cylindrical Roller Bearings with cage. The inner ring is separable NU205 NU206 NU207 NU208 NU209 NU210 NU211 NU212 NU213 NU214 NU215 NU216 NU217 NU218 NU219 NU220 NU221 NU222 NU224 NU226 NU305 NU306 NU307 NU308 NU309 NU310 NU311 NU312 NU313 NU314 NU315 NU316 NU317 NU318 NU319 NU320 NU321 NU322 NU324 NU326

Classification :

Cylindrical Roller Bearings

E-mail

DETAIL INTRODUCTION

NU Series are non-locating, single row Cylindrical Roller Bearings with cage. The inner ring is separable and without flanges on their side of the roller which slides in both directions and is commonly found in motors.

To meet the various needs, cages are made from three different materials:Polyamide(ECP),Steel(ECJ), Brass(ECM).

Bearing Number	d mm	D mm	B mm
NU205	25	52	15
NU206	30	62	16
NU207	35	72	17
NU208	40	80	18
NU209	45	85	19
NU210	50	90	20
NU211	55	100	21
NU212	60	110	22
NU213	65	120	23
NU214	70	125	24
NU215	75	130	25
NU216	80	140	26
NU217	85	150	28
NU218	90	160	30
NU219	95	170	32
NU220	100	180	34
NU221	105	190	36
NU222	110	200	38
NU224	120	215	40
NU226	130	230	40
NU305	25	62	17
NU306	30	72	19
NU307	35	80	21
NU308	40	90	23
NU309	45	100	25
NU310	50	110	27
NU311	55	120	29
NU312	60	130	31
NU313	65	140	33
NU314	70	150	35
NU315	75	160	37
NU316	80	170	39
NU317	85	180	41
NU318	90	190	43
NU319	95	200	45
NU320	100	215	47
NU321	105	225	49
NU322	110	240	50
NU324	120	260	55
NU326	130	280	58

PACKAGES

We can provide, wooden pallet packaging, Wooden packing, Steel strapping packaging, Plastic packaging and other packaging methods. We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements. We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation.

CUSTOMER VISIT

When you choose ChengJin, you can be confident that you are receiving the best products and service in the industry. We strive for excellence in everything we do, and we strive to exceed our customers' expectations with every interaction. Contact us today to learn more about how we can help you with all your bearing needs.

FAQ

Q: How is the product packaged?

A: Standard export seaworthy packing with waterproof paper inside and iron outside, secured by fumigated wooden pallets. It can effectively protect products from corrosion and various climate changes during Marine transportation.

Q: Is there quality inspection before loading?

A: Of course, all our products go through strict quality inspection before packing. Those that fail will be destroyed. Customers can also entrust a third party to inspect the products before loading.

Q: What are the loading ports?

A: In general, we ship the goods from Shanghai, Tianjin, Qingdao and Ningbo ports. You can designate other ports according to your needs.

Q:Can you deliver the goods on time?

A: Yes, we guarantee the best quality products and punctual delivery. Integrity is the tenet of our company.

Q: Can we take some samples? Any fees?

A: Yes, we can provide samples free of charge, but we don't pay for shipping. If you place an order after confirming the sample, we will refund your delivery fee or deduct it from the order amount.

Q: Can I visit your factory?

A: Of course. We welcome customers from all over the world to visit our factory.

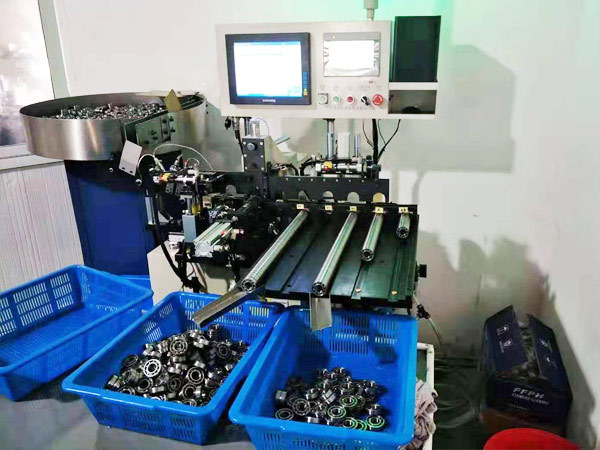

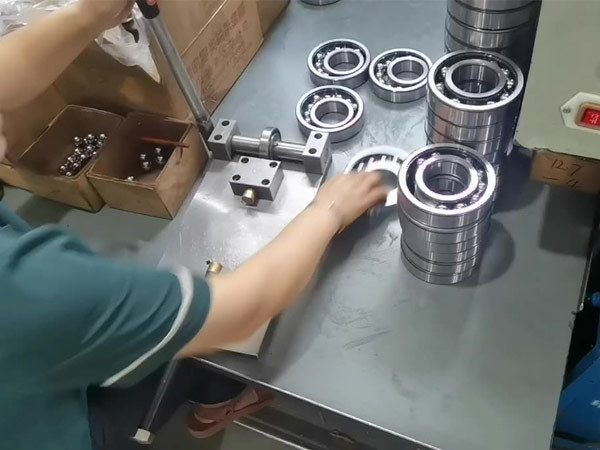

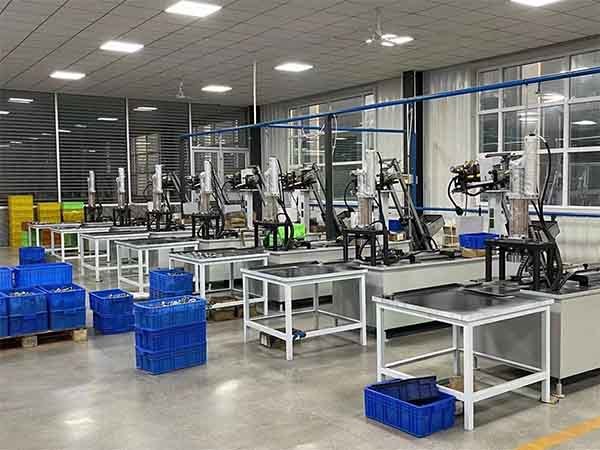

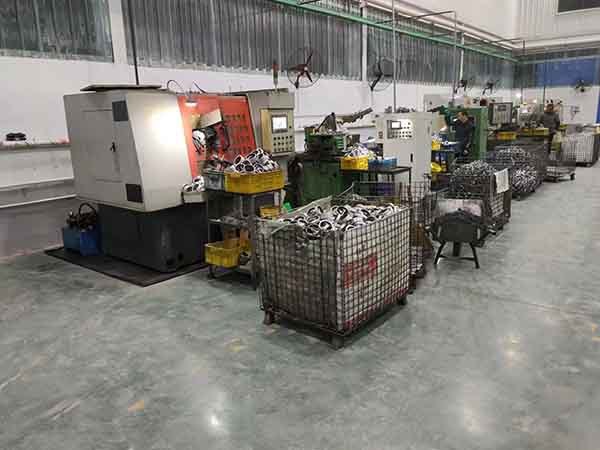

FACTORY WORKSHOP
